LS34H

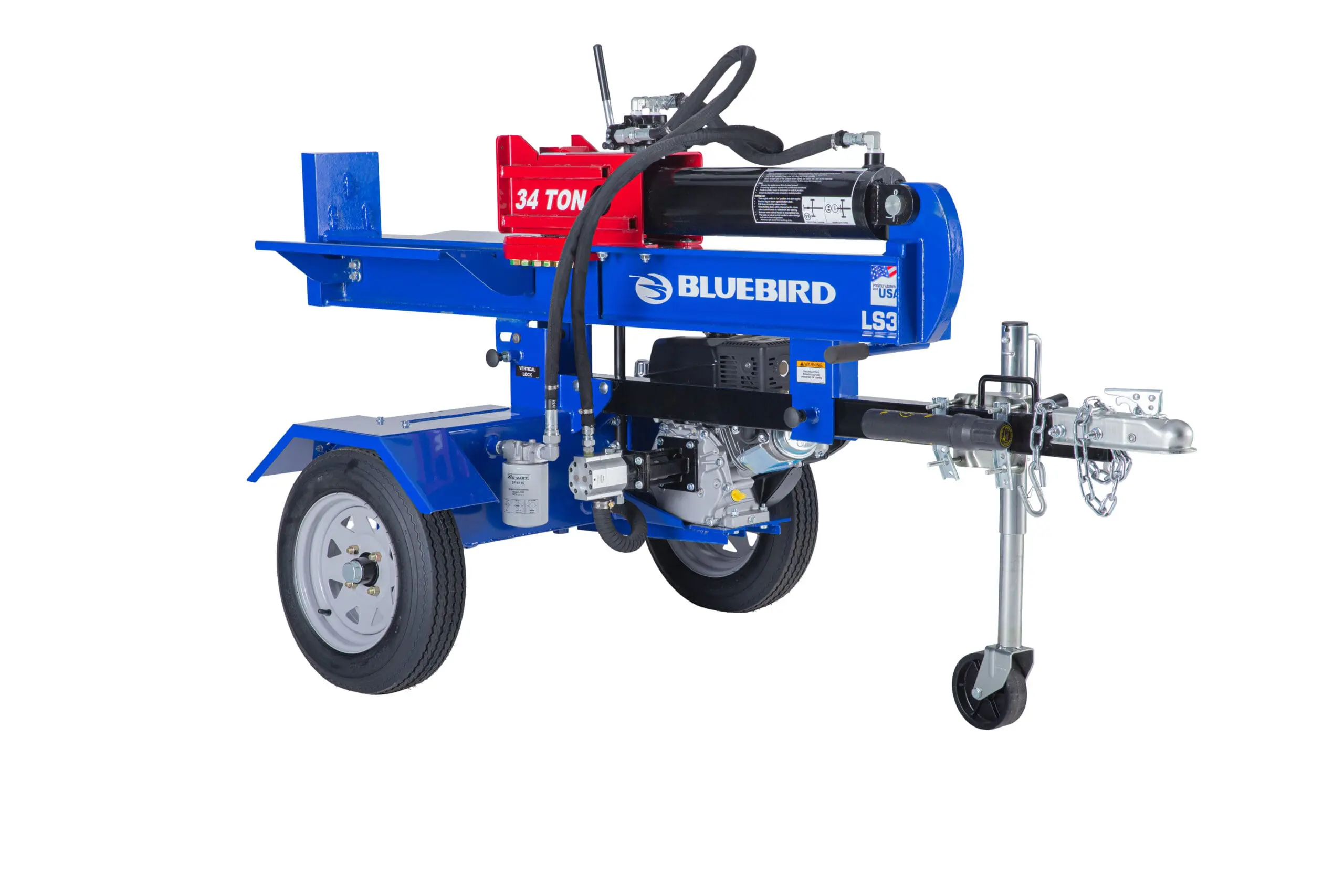

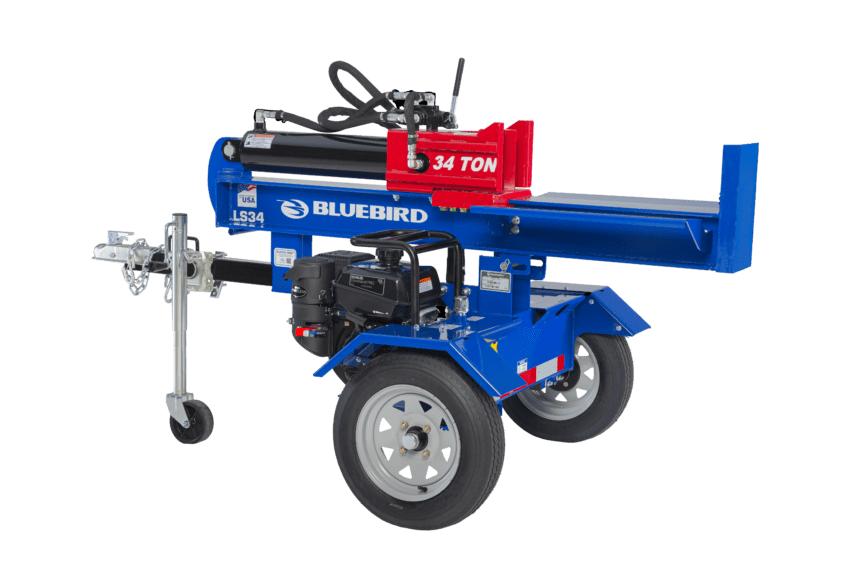

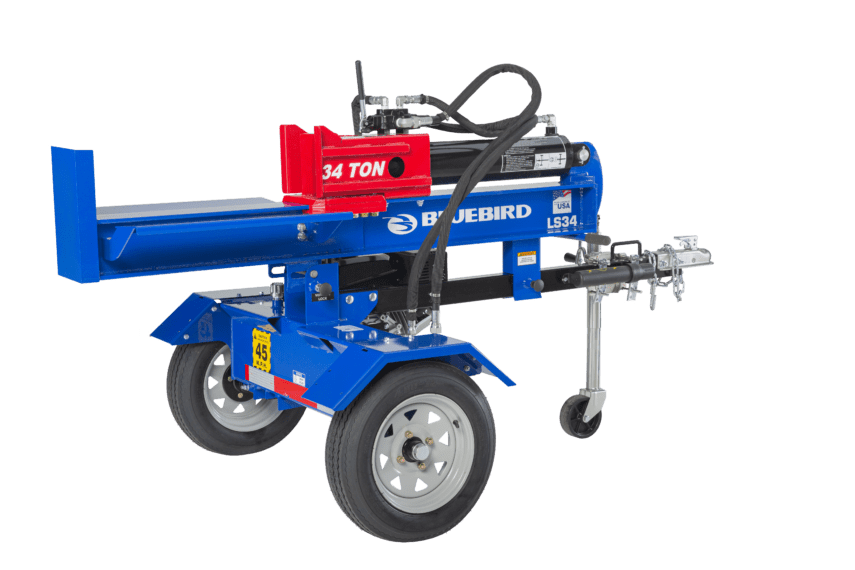

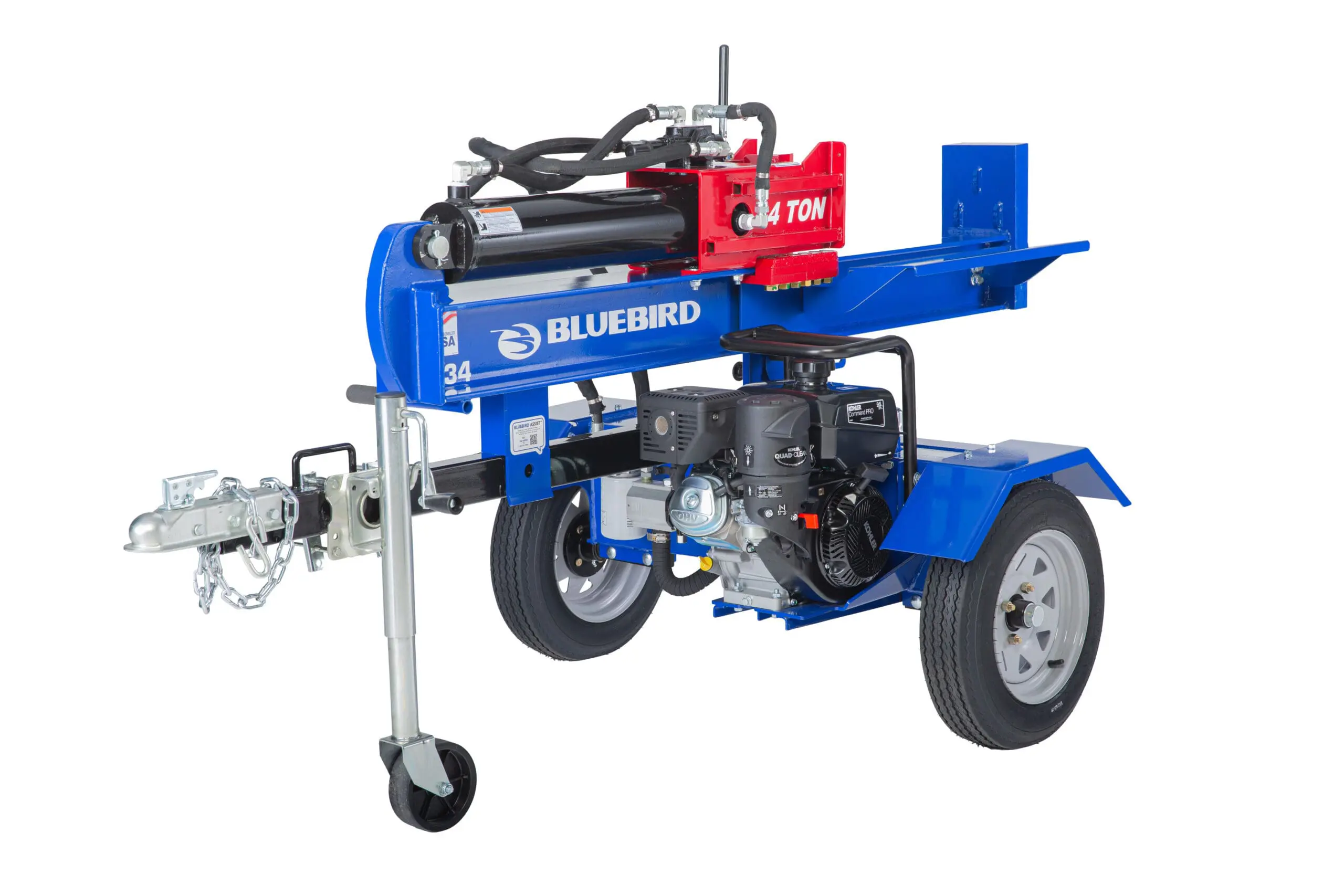

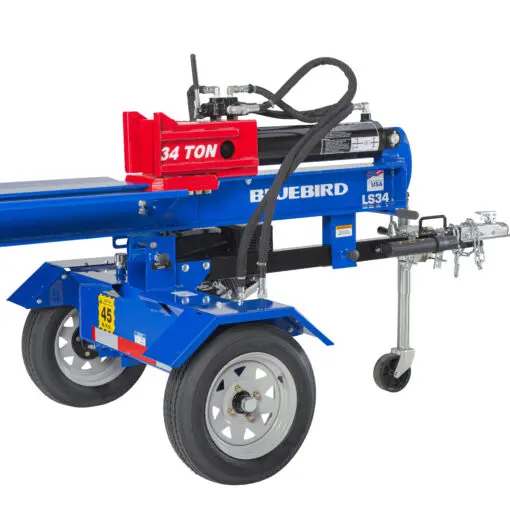

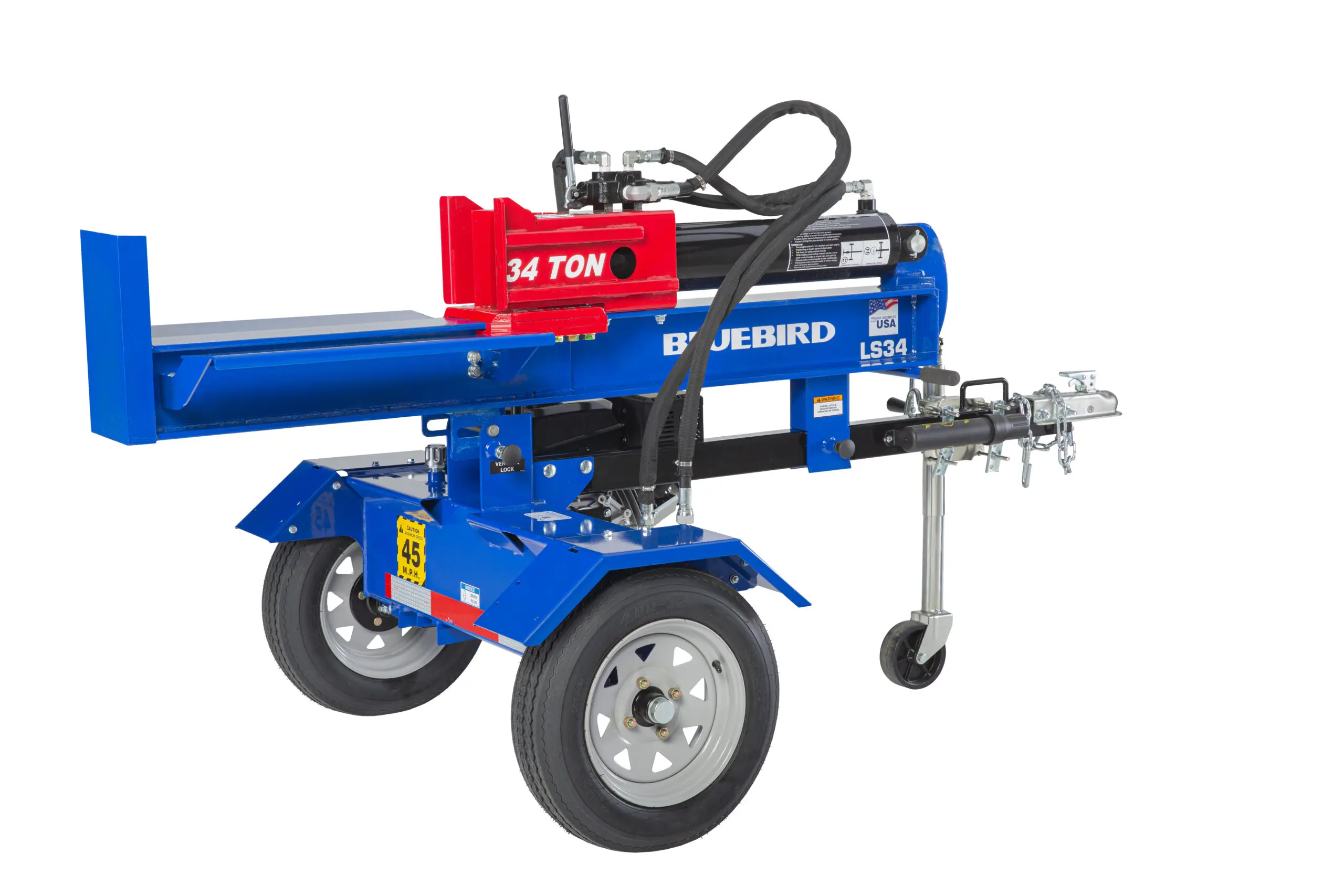

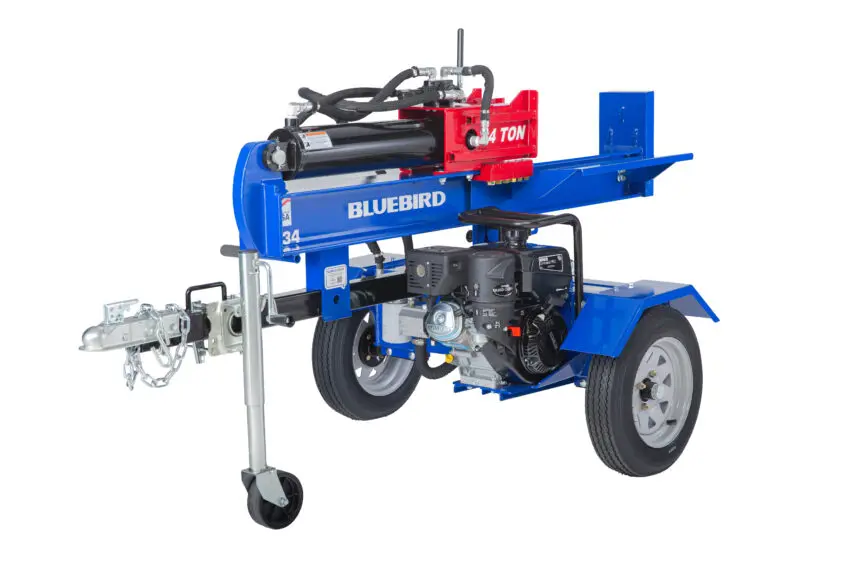

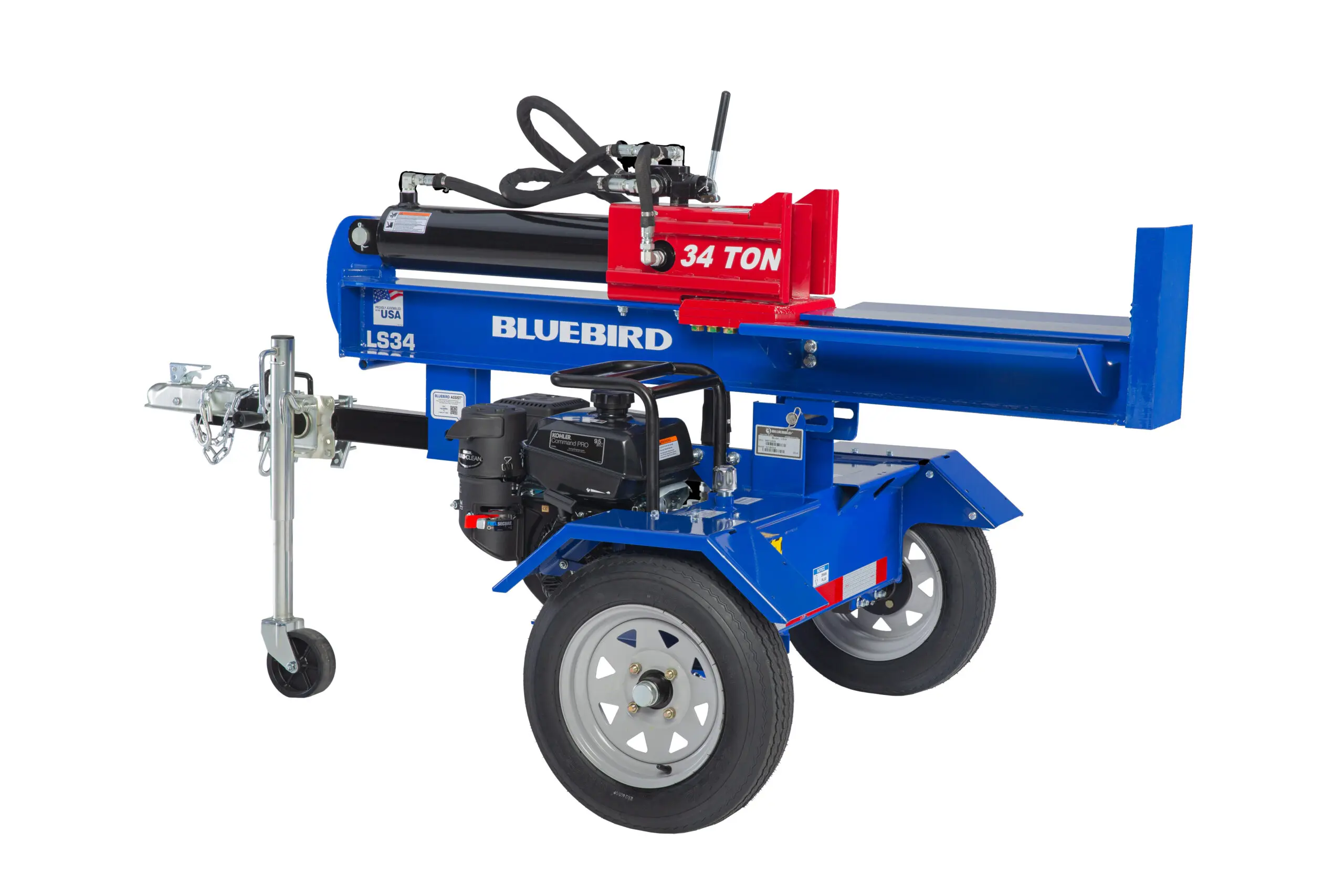

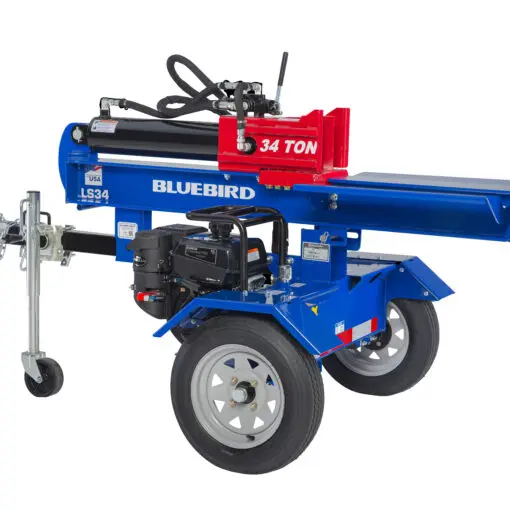

Name: 34 Ton BlueBird Gen II Log Splitter Horizontal and Vertical Honda or Kohler Engine LS34H
SKU: 3515
Price: 7499.00 USD
Availability: InStock

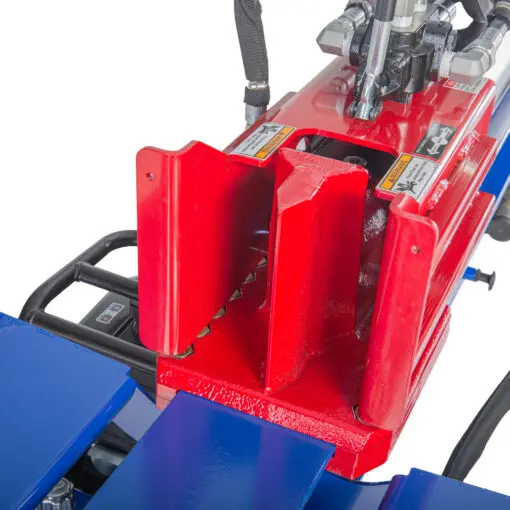

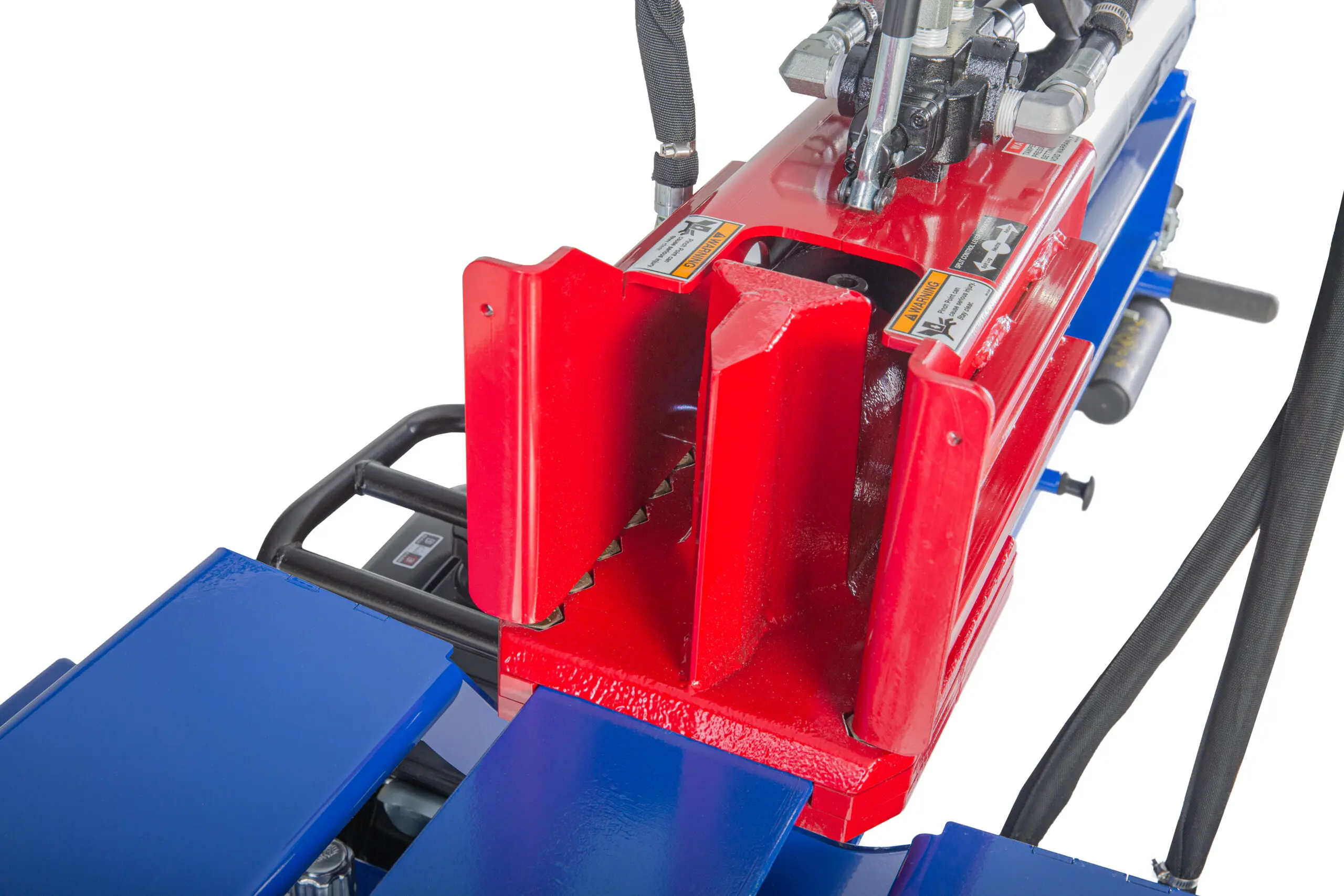

Conquer any and all log splitting tasks with Bluebird’s Gen II industrial grade LS34H log Splitter. Its 34 ton capacity will handle the largest logs, while its large diameter push rod and 17.5GPM pump provide fast cycle times typically only seen in smaller capacity units. The Gen II beam is 4x stronger and the Gen II cutting wedge is 41% heavier with 6 additional clamping bolts adding strength and rigidity and prolonging the overall life. This machine can be operated in either the horizontal or vertical position. Part Numbers Honda LS34H 969-124412, Kohler LS34H 969-124528

Engine

Engine Options

Honda GX270 or Kohler Command Pro

Log Splitter Features

Cylinder	24″ L x 5" Dia. \| 2.5″ Dia. rod
Valve	3 Position with Auto Return
Pump	17.5 GPM
Hydraulic System	8 Gallons Tank w/ Internal Baffles
Bed Height	33″
Beam	6.38″ x 24.9 LBS/FT flange w/ 0.455" thick top plate
Tires	12″ x 4.8" Highway Rated
Log Opening	25″
Cycle Time	Appox. 12 Seconds Complete Cycle
Splitting Force	Appox. 34 tons

Dimensions

Product size, LxWxH	93" x 48" x 38" Horizontal \| 72" Vertical
Weight (less fuel/water containers)	751 lbs
Crate Dimensions L x W x H	77" x 48" x 35" (900 LBS)

Drive System

Drive Train	V-Belt to Jack Shaft, Roller Chain
Clutch Mechanism	Spring Loaded Belt Idler

Other

Standard Accessories 1	Log Dislodger, Log Cradle, Engine Guard
Available Accessories 1	Light Kit Option
Warranty	Blue Bird Standard Engine Warranty is a 2 Year Engine Warranty for Commercial, Rental, or Residential Excluding Exceptions Indicated by an (). 3 Year Engine Warranty for Honda Engines. 3 Year Engine Warranty for Kohler Engines. 90 Day Briggs & Stratton Engine Warranty for Commercial Use and 2 Year Briggs & Stratton Engine Warranty for Residential Use. Hover Mowers Warranty Specific Information is as Follows – Hover Mower Model HM160 Engine 1 Year Commercial Use / 3 Year Residential Use. Hover Mower Model HM200 Engine 90 Day Commercial Use / 3 Year Residential Use.
